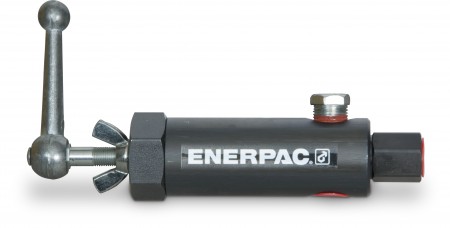

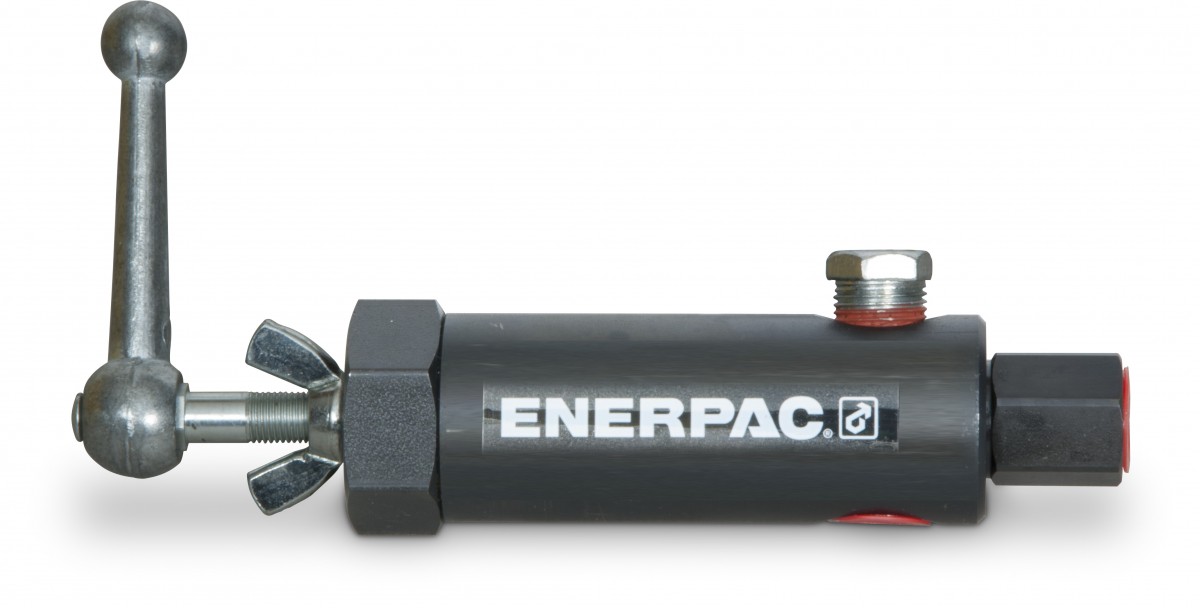

RELIEF VALVE REF2355

RELIEF VALVE REF2355

  • Model V152
  • Product Line Workholding Tools
  • Series V

a

Enquire about this shop item here

Description

  • Limits pressure developed by the pump in hydraulic circuit, thus limiting the force imposed on other components
  • 55 - 700 bar adjustment range; ± 3% repeatability
  • Valve opens whenever preset pressure is reached. To increase pressure setting, turn handle clockwise
  • Max. oil flow 30 l/min
  • Includes 1 meter return line hose kit
  • Maximum Operating Pressure bar 700
  • Maximum Operating Pressure psi 10,000
  • Valve Adjustable Pressure Range Bar 55 - 700
  • Valve Oil Ports B S P P 3/8" NPTF
  • Valve Pressure Function '+3% Repeatability
  • Valve flow Capacity Lmin 30
  • Valve maximum Oil Flow In3min 1,830
  • Valve oil Ports 3/8" NPT
  • Maximum Operating Pressure bar 700
  • Valve Adjustable Pressure Range Bar 55 - 700
  • Valve Oil Ports B S P P 3/8" NPTF
  • Valve Pressure Function '+3% Repeatability
  • Valve oil Ports 3/8" NPT
