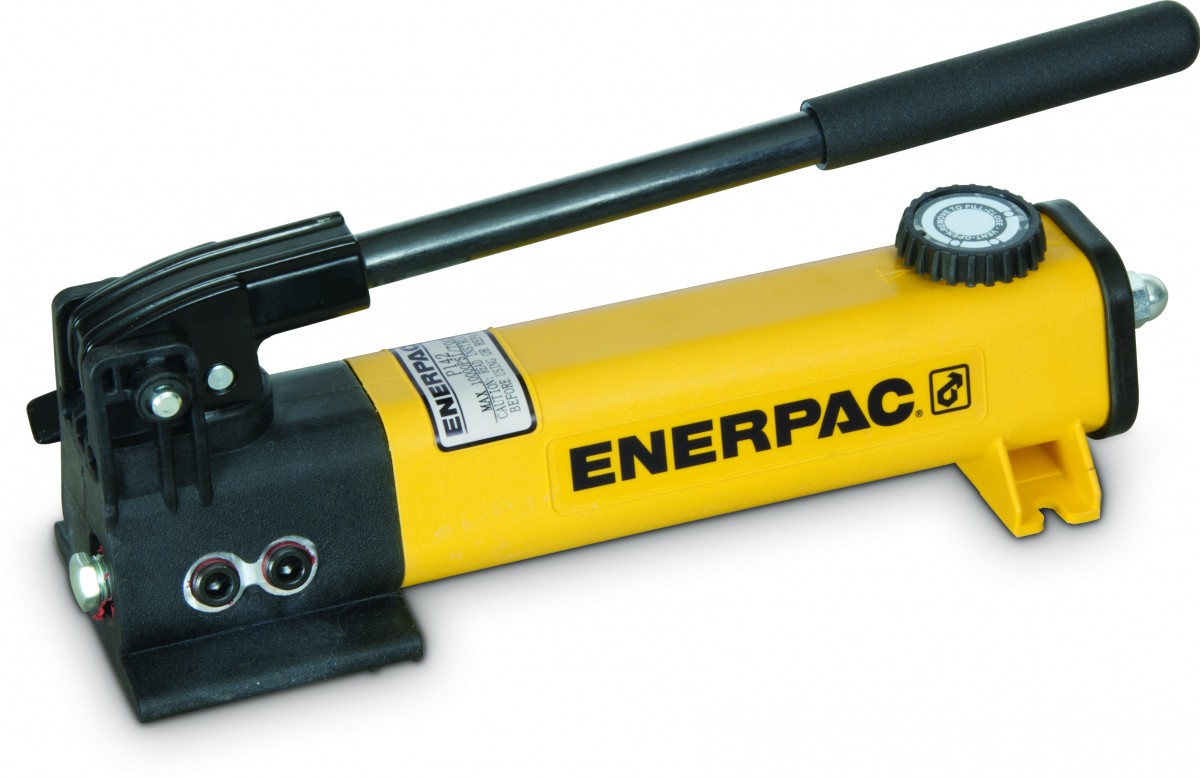

PUMP HAND SGL SPD 10000 PSI

PUMP HAND SGL SPD 10000 PSI

  • Model P141
  • Product Line Industrial Tools, Workholding Tools
  • Series P
Enquire about this shop item here

Description

  • Lightweight and compact design
  • Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance
  • Two-speed operation on most models reduces handle strokes by as much as 78% over single speed pumps
  • Lower handle effort to minimize operator fatigue
  • Handle lock and lightweight construction for easy carrying
  • Large oil capacities to power a wide range of cylinders or tools
  • Non-conductive fiberglass handle for operator safety
  • Internal pressure relief valve for overload protection
  • Maximum Operating Pressure bar 700
  • Maximum Operating Pressure psi 10,000
  • Weight Lbs 4.5
  • Hydraulic Pump Cylinder Compatability Single-acting
  • Hydraulic Pump Maximum Flow Rate Rangesat Rated Pressure In3min 0 - 20
  • Hydraulic Pump Maximum Flowat Rated Pressure 0,90 cm3/stroke
  • Hydraulic Pump Maximum Handle Effort Lbs 72
  • Hydraulic Pump Maximum Operating Pressure Ranges Bar 700
  • Hydraulic Pump Maximum Operating Pressure Ranges Psi 10,000
  • Hydraulic Pump Oil Displacement Per Stroke1st Stage In3 '-
  • Hydraulic Pump Oil Displacement Per Stroke1st Stagecm3 '-
  • Hydraulic Pump Oil Displacement Per Stroke2nd Stage In3 '-
  • Hydraulic Pump Oil Displacement Per Stroke2nd Stagecm3 '-
  • Hydraulic Pump Oil Displacement Per Stroke In3 0.055
  • Hydraulic Pump Oil Displacement Per Strokecm3 0,90
  • Hydraulic Pump Piston Stroke In 0.5
  • Hydraulic Pump Pressure Rating2nd Stage Psi 10,000
  • Hydraulic Pump Pressure Rating2nd Stagebar 700
  • Hydraulic Pump Pump Power Source Manual
  • Hydraulic Pump Reservoir Capacitycm3 327
  • Hydraulic Pump Reservoir Capacityin3 20
  • Hydraulic Pump Usable Oil Capacity In3 20
  • Hydraulic Pump Usable Oil Capacitycm3 327
  • Hydraulic Pump Valve Operation Manual
  • Hydraulic Pump maximum Flow At Rated Pressure metric 0,90 cm3/stroke
  • Maximum Operating Pressure bar 700
  • Weight Kgs 2,4
  • Hydraulic Pump Cylinder Compatability Single-acting
  • Hydraulic Pump Maximum Flowat Rated Pressure 0,90 cm3/stroke
  • Hydraulic Pump Maximum Handle Effortkg 32,7
  • Hydraulic Pump Maximum Operating Pressure Ranges Bar 700
  • Hydraulic Pump Oil Displacement Per Stroke1st Stage In3 '-
  • Hydraulic Pump Oil Displacement Per Stroke1st Stagecm3 '-
  • Hydraulic Pump Oil Displacement Per Stroke2nd Stage In3 '-
  • Hydraulic Pump Oil Displacement Per Stroke2nd Stagecm3 '-
  • Hydraulic Pump Oil Displacement Per Stroke In3 0.055
  • Hydraulic Pump Oil Displacement Per Strokecm3 0,90
  • Hydraulic Pump Piston Strokemm 12,7
  • Hydraulic Pump Pressure Rating2nd Stagebar 700
  • Hydraulic Pump Pump Power Source Manual
  • Hydraulic Pump Reservoir Capacitycm3 327
  • Hydraulic Pump Reservoir Capacityin3 20
  • Hydraulic Pump Usable Oil Capacity In3 20
  • Hydraulic Pump Usable Oil Capacitycm3 327
  • Hydraulic Pump Valve Operation Manual
  • Hydraulic Pump maximum Flow At Rated Pressure metric 0,90 cm3/stroke
  • Dimension A In 7.31
  • Dimension B In 13.25
  • Dimension C In 1.13
  • Dimension D In 3.37
  • Dimension E In 1.13
  • Dimension G In 1/4" - 18 NPTF
  • Dimension H In 12.56
  • Dimension J In 0.75
  • Hydraulic Pump Dimension Lin 5.63
  • Hydraulic Pump Dimension Nin 3.75
  • Hydraulic Pump Dimension Pin 3.25
  • Hydraulic Pump Dimension Sin 0.28
  • Dimension A Mm 185
  • Dimension B Mm 336
  • Dimension C Mm 28
  • Dimension D Mm 85
  • Dimension E Mm 28
  • Dimension H Mm 319
  • Dimension J Mm 19
  • Hydraulic Pump Dimension Lmm 143
  • Hydraulic Pump Dimension Nmm 95
  • Hydraulic Pump Dimension Pmm 80
  • Hydraulic Pump Dimension Smm 7
