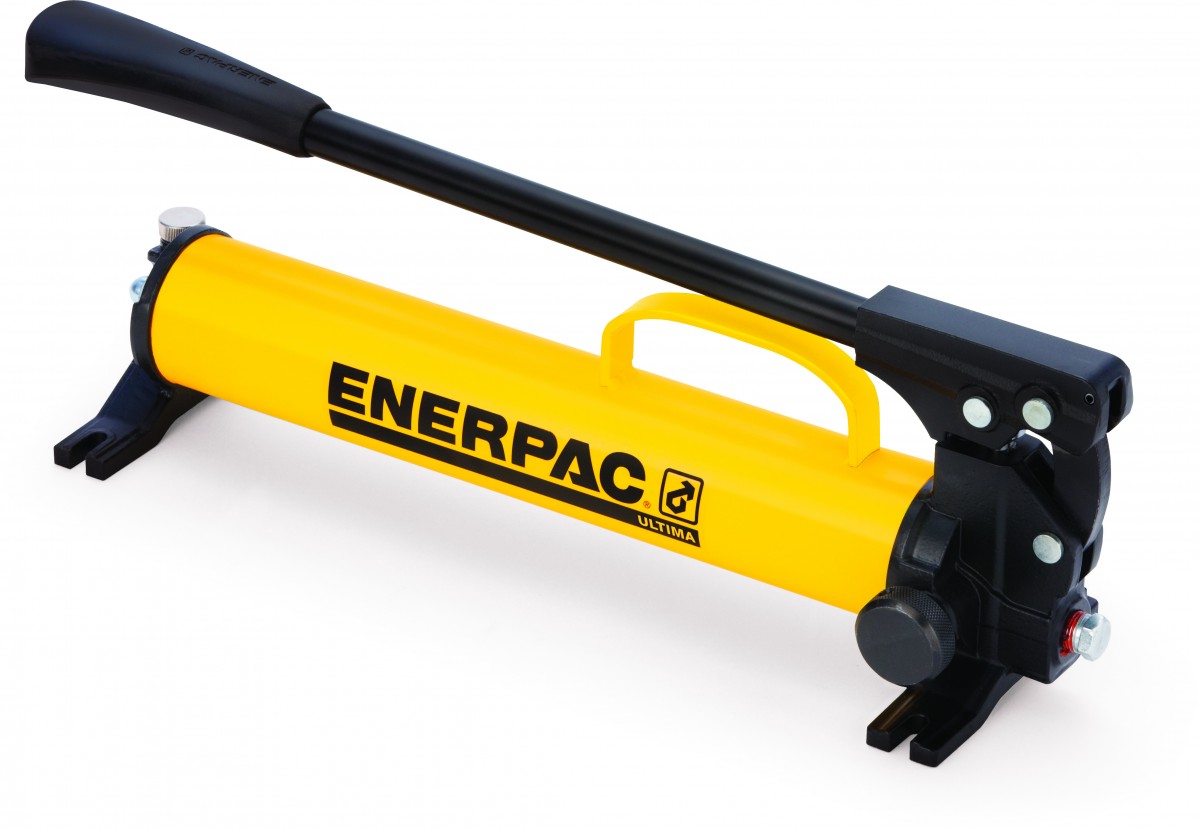

PUMP, HAND

PUMP, HAND

  • Model P39
  • Product Line Industrial Tools
  • Series P
Enquire about this shop item here

Description

  • Reduced handle effort and ergonomic grip for less operator fatigue
  • Vent free reservoir eliminates spills
  • Quick grip handle allows for easy transport
  • Integral reservoir over-pressurization protection
  • Maximum Operating Pressure bar 700
  • Maximum Operating Pressure psi 10,000
  • Weight Lbs 13.6
  • Hydraulic Pump Cylinder Compatability Single-acting
  • Hydraulic Pump Maximum Flow Rate Rangesat Rated Pressure In3min 0 - 20
  • Hydraulic Pump Maximum Flowat Rated Pressure 2,46 cm3/stroke
  • Hydraulic Pump Maximum Handle Effort Lbs 85
  • Hydraulic Pump Maximum Operating Pressure Ranges Bar 700
  • Hydraulic Pump Maximum Operating Pressure Ranges Psi 10,000
  • Hydraulic Pump Oil Displacement Per Stroke1st Stage In3 '-
  • Hydraulic Pump Oil Displacement Per Stroke1st Stagecm3 '-
  • Hydraulic Pump Oil Displacement Per Stroke2nd Stage In3 '-
  • Hydraulic Pump Oil Displacement Per Stroke2nd Stagecm3 '-
  • Hydraulic Pump Oil Displacement Per Stroke In3 0.15
  • Hydraulic Pump Oil Displacement Per Strokecm3 2,46
  • Hydraulic Pump Piston Stroke In 1
  • Hydraulic Pump Pressure Rating2nd Stage Psi 10,000
  • Hydraulic Pump Pressure Rating2nd Stagebar 700
  • Hydraulic Pump Pump Power Source Manual
  • Hydraulic Pump Reservoir Capacitycm3 672
  • Hydraulic Pump Reservoir Capacityin3 41
  • Hydraulic Pump Usable Oil Capacity In3 41
  • Hydraulic Pump Usable Oil Capacitycm3 672
  • Hydraulic Pump Valve Operation Manual
  • Hydraulic Pump maximum Flow At Rated Pressure metric 2,46 cm3/stroke
  • Maximum Operating Pressure bar 700
  • Weight Kgs 6,2
  • Hydraulic Pump Cylinder Compatability Single-acting
  • Hydraulic Pump Maximum Flowat Rated Pressure 2,46 cm3/stroke
  • Hydraulic Pump Maximum Handle Effortkg 39
  • Hydraulic Pump Maximum Operating Pressure Ranges Bar 700
  • Hydraulic Pump Oil Displacement Per Stroke1st Stage In3 '-
  • Hydraulic Pump Oil Displacement Per Stroke1st Stagecm3 '-
  • Hydraulic Pump Oil Displacement Per Stroke2nd Stage In3 '-
  • Hydraulic Pump Oil Displacement Per Stroke2nd Stagecm3 '-
  • Hydraulic Pump Oil Displacement Per Stroke In3 0.15
  • Hydraulic Pump Oil Displacement Per Strokecm3 2,46
  • Hydraulic Pump Piston Strokemm 25,4
  • Hydraulic Pump Pressure Rating2nd Stagebar 700
  • Hydraulic Pump Pump Power Source Manual
  • Hydraulic Pump Reservoir Capacitycm3 672
  • Hydraulic Pump Reservoir Capacityin3 41
  • Hydraulic Pump Usable Oil Capacity In3 41
  • Hydraulic Pump Usable Oil Capacitycm3 672
  • Hydraulic Pump Valve Operation Manual
  • Hydraulic Pump maximum Flow At Rated Pressure metric 2,46 cm3/stroke
  • Dimension A In 15.09
  • Dimension B In 18.91
  • Dimension C In 1.18
  • Dimension D In 1.38
  • Dimension E In 1.48
  • Dimension H In 21.63
  • Dimension J In 16.37
  • Hydraulic Pump Dimension Lin 6.39
  • Hydraulic Pump Dimension Nin 5.51
  • Hydraulic Pump Dimension Pin 4.37
  • Hydraulic Pump Dimension Sin 0.33
  • Dimension A Mm 383
  • Dimension B Mm 480
  • Dimension C Mm 30
  • Dimension D Mm 35
  • Dimension E Mm 37
  • Dimension H Mm 550
  • Dimension J Mm 416
  • Hydraulic Pump Dimension Lmm 163
  • Hydraulic Pump Dimension Nmm 140
  • Hydraulic Pump Dimension Pmm 111
  • Hydraulic Pump Dimension Smm 8,4
