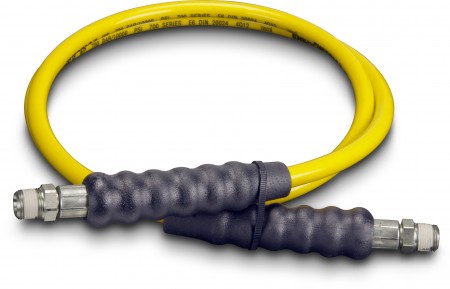

HOSE 6 FT 3/8 NPT + 3/8 NPT

For demanding applications, featuring a 4:1 safety factor
Maximum working pressure of 700 bar
Outside jacket is polyurethane, to provide maximum abrasion resistance
Exhibits low volumetric expansion under pressure to enhance overall system efficiency
Crimped-on rubber strain relief for improved life and durability on all models.

Maximum Operating Pressure bar 700
Maximum Operating Pressure psi 10,000
Weight Lbs 2
Hose Capacitycm3 57,91
Hose End One Assembly 3/8" NPTF
Hose End Two Assembly 3/8" NPTF
Hose Lengthm 1,8
Hose end One Coupler 3/8" NPTF
Hose end Two Coupler 3/8" NPTF
Hose hose Oil Capacity Cm3 When using greater hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for 6,4 mm inside diameter hoses: Capacity (cm3) = 32,1699 x Length (m)
Hose hose Oil Capacity In3 When using long hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for .25" internal diameter hoses: Capacity (in3) = .5892 x Length (ft)
Hose internal Diameter In 0.25
Hose length Ft 6
Hose oil Capacity In3 3.54

Maximum Operating Pressure bar 700
Weight Kgs 0,9
Hose Capacitycm3 57,91
Hose End One Assembly 3/8" NPTF
Hose End Two Assembly 3/8" NPTF
Hose Internal Diametermm 6,4
Hose Lengthm 1,8
Hose end One Coupler 3/8" NPTF
Hose end Two Coupler 3/8" NPTF
Hose hose Oil Capacity Cm3 When using greater hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for 6,4 mm inside diameter hoses: Capacity (cm3) = 32,1699 x Length (m)
Hose hose Oil Capacity In3 When using long hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for .25" internal diameter hoses: Capacity (in3) = .5892 x Length (ft)
Hose length Ft 6
Hose oil Capacity In3 3.54
