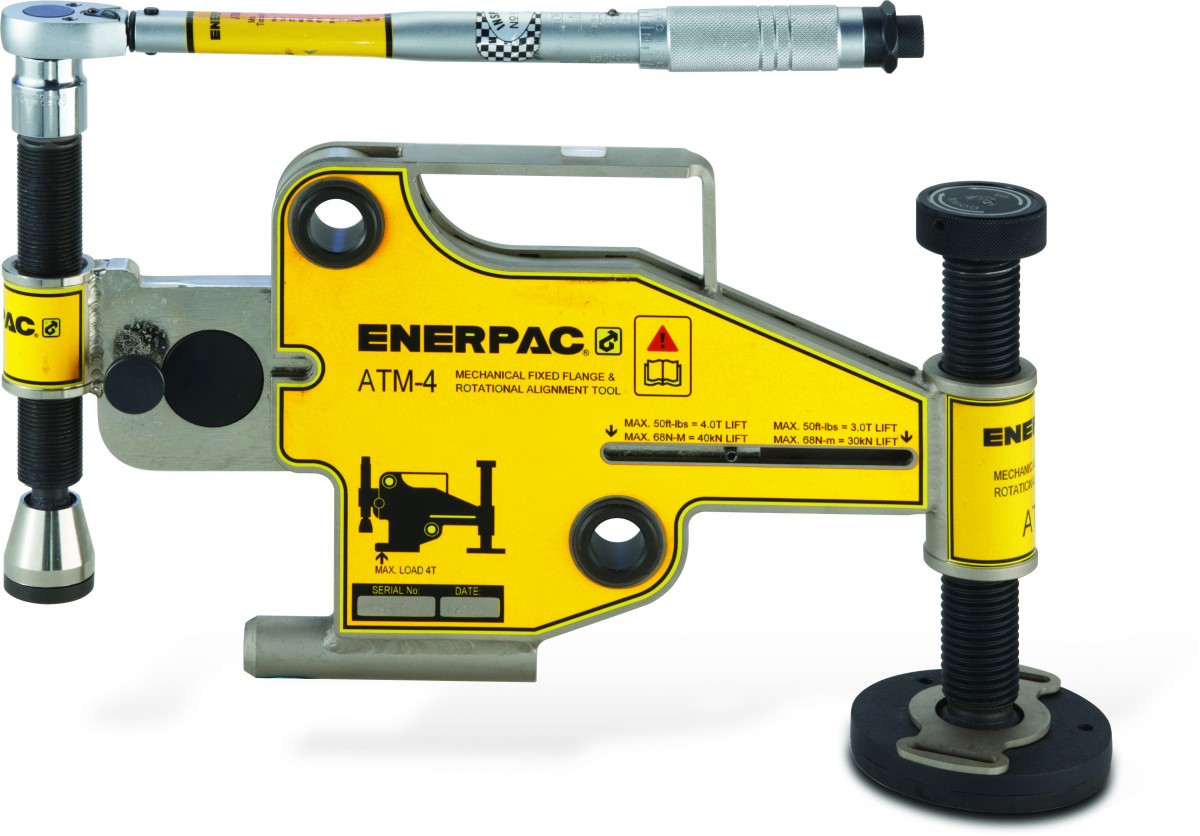

FLANGE ALIGNMENT TOOL 4 TON

FLANGE ALIGNMENT TOOL 4 TON

  • Model ATM4
  • Product Line Bolting Tools
  • Series ATM

Enerpac's ATM-Series Tools help correct flange misalignment and allow bolts to be placed into joints. This alignment takes place during pipe work construction or maintenance.

These tools provide pipe installers and maintenance personnel with some of the simplest, safest and most productive solutions available for flange alignment in the market today.

Enquire about this shop item here

Description

  • Enerpac ATM-Series tools rectify twist and rotational misalignment quickly, safely and without the need for an external power source
  • Appropriate for use on most ANSI, API, BS and DIN flanges
  • Reduces set-up time: no need for chains, pulleys or rigs
  • Safety strap helps provide secure operation
  • Can be installed and used in any position
  • Portable, lightweight design enables easy transport and use, even in remote locations
  • Weight Lbs 19
  • Flange Alignment Tools bolt Hole Diameter Min Mm B 25
  • Flange Alignment Tools flange Wall Thickness In 1.18 - 5.23
  • Flange Alignment Tools maximum Reaction Force Imperial Ton 4
  • Flange Alignment Tools maximum Reaction Force K N 40
  • Flange Alignment Tools maximum Reaction Force Metric Ton 4
  • Flange Alignment Tools minimum Bolt Size In 1
  • Flange Alignment Tools reaction Force2 Max Imperial Ton 4
  • Flange Alignment Tools reaction Force2 Max Metric Ton 4
  • Flange Alignment Tools bolt Hole Diameter Min Mm B 25
  • Flange Alignment Tools flange Wall Thickness Mm 30 - 133
  • Flange Alignment Tools maximum Reaction Force Imperial Ton 4
  • Flange Alignment Tools maximum Reaction Force K N 40
  • Flange Alignment Tools maximum Reaction Force Metric Ton 4
  • Flange Alignment Tools minimum Bolt Size Mm 25
  • Flange Alignment Tools reaction Force2 Max Imperial Ton 4
  • Flange Alignment Tools reaction Force2 Max Metric Ton 4
