CYL 50 T S/A FLAT-JAC

CYL 50 T S/A FLAT-JAC

  • Model RSM500
  • Product Line Industrial Tools
  • Series RSM

a

Enquire about this shop item here

Description

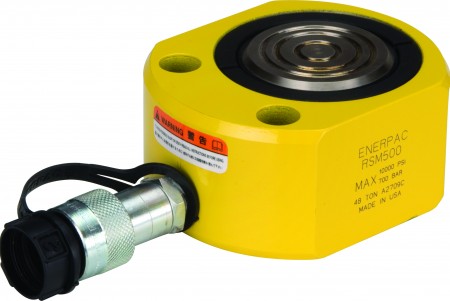

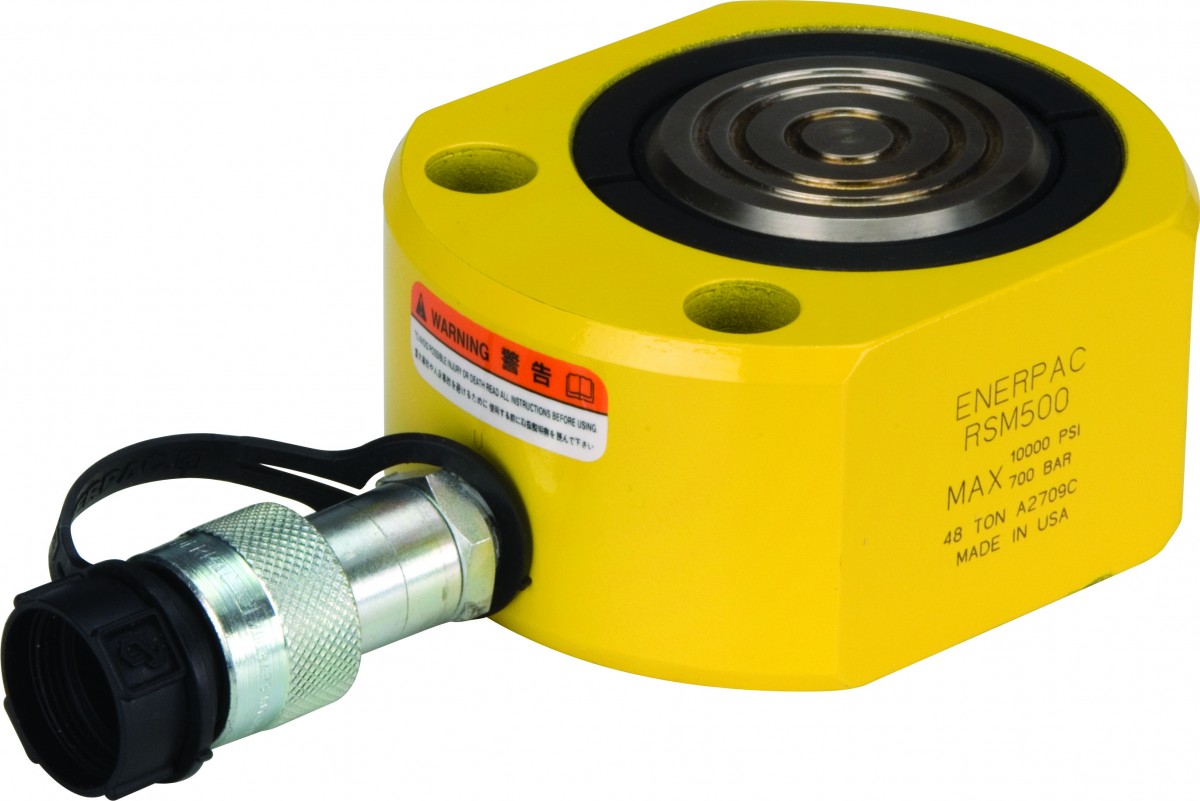

  • Compact, flat design for use where other cylinders will not fit
  • Mounting holes permit easy fixturing
  • Baked enamel finish for increased corrosion resistance
  • CR400 coupler and dust cap included
  • Hard chrome plated high-quality steel plungers
  • Grooved plunger ends require no saddle
  • Single-acting spring return
  • Maximum Operating Pressure bar 700
  • Maximum Operating Pressure psi 10,000
  • Stroke in 0.63
  • Weight Lbs 15
  • Hydraulic Cylinders Base Mounting Hole Counter Bore Depth in 0.5
  • Hydraulic Cylinders Base Mounting Hole Counter Bore Diameter in 0.75
  • Hydraulic Cylinders Base Mounting Hole Diameter Vin 0.47
  • Hydraulic Cylinders Base Mounting Hole Pitch Uin 2.62
  • Hydraulic Cylinders Cylinder Class Imperial Tons 50
  • Hydraulic Cylinders Cylinder Effective Area Advance In2 9.62
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance Imperial Tons 48.1
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance kn 435
  • Hydraulic Cylinders Maximum Operating Pressure Rangespsi 10,000
  • Hydraulic Cylinders Oil Capacity Advance In3 6.01
  • Hydraulic Cylinders Plunger To Base Lin 2.25
  • Hydraulic Cylinders Plunger To Mounting Hole Min 2.13
  • Hydraulic Cylinders collapsed Height A Ranges In 0 - 4.99
  • Hydraulic Cylinders oil Capacity Advance Cm3 99
  • Hydraulic Cylinders return Type Single-Acting, Spring Return
  • Hydraulic Cylinders stroke Ranges In 0 - 0.99
  • Maximum Operating Pressure bar 700
  • Stroke mm 16
  • Weight Kgs 6,8
  • Hydraulic Cylinders Base Mounting Hole Counter Bore Depth mm 12,7
  • Hydraulic Cylinders Base Mounting Hole Counter Bore Diameter mm 19,0
  • Hydraulic Cylinders Base Mounting Hole Diameter Vmm 11,0
  • Hydraulic Cylinders Base Mounting Hole Pitch Umm 66,5
  • Hydraulic Cylinders Cylinder Effective Area Advance cm2 62,1
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance kn 435
  • Hydraulic Cylinders Oil Capacity Advance In3 6.01
  • Hydraulic Cylinders Plunger To Base Lmm 57
  • Hydraulic Cylinders Plunger To Mounting Hole Mmm 53
  • Hydraulic Cylinders collapsed Height A Ranges Mm 0 - 127
  • Hydraulic Cylinders oil Capacity Advance Cm3 99
  • Hydraulic Cylinders return Type Single-Acting, Spring Return
  • Hydraulic Cylinders stroke Ranges Mm 0 - 23
  • Hydraulic Cylinders Baseto Advance Port H in 0.75
  • Hydraulic Cylinders Collapsed Height A in 2.63
  • Hydraulic Cylinders Cylinder Bore Diameter E in 3.5
  • Hydraulic Cylinders Extended Height B in 3.25
  • Hydraulic Cylinders Outside Diameter D in 5.50 x 4.50
  • Hydraulic Cylinders Plunger Diameter F in 2.75
  • Hydraulic Cylinders Saddle Protrusion from Plunger K in 0.08
  • Hydraulic Cylinders Baseto Advance Port H mm 19
  • Hydraulic Cylinders Collapsed Height A mm 66
  • Hydraulic Cylinders Cylinder Bore Diameter E mm 88,9
  • Hydraulic Cylinders Extended Height B mm 82
  • Hydraulic Cylinders Outside Diameter D mm 140 x 114
  • Hydraulic Cylinders Plunger Diameter F mm 69,8
  • Hydraulic Cylinders Saddle Protrusionfrom Plunger K1 mm 2
  • Hydraulic Cylinders saddle Protrusion From Plunger K Mm 2
