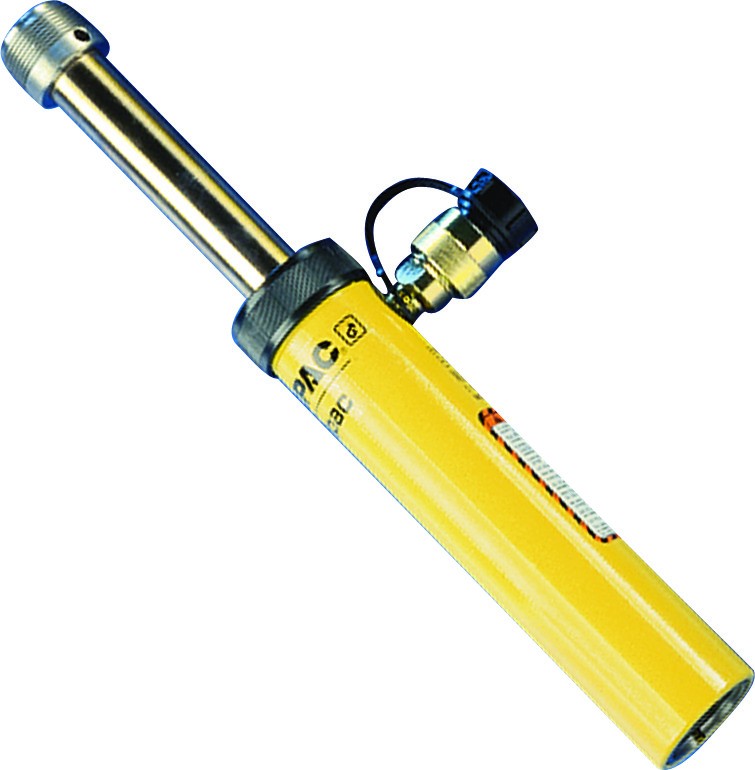

CYL 5 T S/A PULL

CYL 5 T S/A PULL

  • Model BRC46
  • Product Line Industrial Tools
  • Series BRC
Enquire about this shop item here

Description

  • High strength alloy steel construction
  • Plunger blow-out protection to prevent over-extension
  • Hard chrome-plated plunger for long life
  • CR400 coupler and dust cap included on all models
  • Baked enamel finish for increased corrosion resistance
  • Plunger wiper reduces contamination, extending cylinder life
  • Single-acting spring return
  • Replaceable links
  • Maximum Operating Pressure bar 700
  • Maximum Operating Pressure psi 10,000
  • Stroke in 5.5
  • Weight Lbs 10
  • Hydraulic Cylinders Cylinder Class Imperial Tons 5
  • Hydraulic Cylinders Cylinder Effective Area Retract In2 1.13
  • Hydraulic Cylinders Cylinder Effective Area Retractcm2 7,3
  • Hydraulic Cylinders Maximum Cylinder Capacity Retract Imperial Tons 5.6
  • Hydraulic Cylinders Maximum Cylinder Capacity Retractkn 51
  • Hydraulic Cylinders Maximum Operating Pressure Rangespsi 10,000
  • Hydraulic Cylinders Oil Capacity Retract In3 6.21
  • Hydraulic Cylinders Plunger Outside Thread Qin 1 3/16" - 16
  • Hydraulic Cylinders collapsed Height A Ranges In 10.0 - 14.99
  • Hydraulic Cylinders oil Capacity Retract Cm3 101
  • Hydraulic Cylinders return Type Single-Acting, Spring Return
  • Hydraulic Cylinders stroke Ranges In 4.5 - 6.99
  • Maximum Operating Pressure bar 700
  • Stroke mm 140
  • Weight Kgs 4,5
  • Hydraulic Cylinders Cylinder Effective Area Retract In2 1.13
  • Hydraulic Cylinders Cylinder Effective Area Retractcm2 7,3
  • Hydraulic Cylinders Maximum Cylinder Capacity Retract Imperial Tons 5.6
  • Hydraulic Cylinders Maximum Cylinder Capacity Retractkn 51
  • Hydraulic Cylinders Oil Capacity Retract In3 6.21
  • Hydraulic Cylinders Plunger External Thread Qmm 1 3/16" - 16
  • Hydraulic Cylinders collapsed Height A Ranges Mm 255 - 381
  • Hydraulic Cylinders mounting Thread Length Z Mm 24
  • Hydraulic Cylinders oil Capacity Retract Cm3 101
  • Hydraulic Cylinders return Type Single-Acting, Spring Return
  • Hydraulic Cylinders stroke Ranges Mm 120 - 174
  • Hydraulic Cylinders top To Inlet Port H Mm 42
  • Hydraulic Cylinders Base Mounting Holes Thread V 1 1/4" - 11 1/2 NPT
  • Hydraulic Cylinders Baseto Advance Port H in 1.69
  • Hydraulic Cylinders Collapsed Height A in 11.88
  • Hydraulic Cylinders Cylinder Bore Diameter E in 1.69
  • Hydraulic Cylinders Extended Height B in 17.38
  • Hydraulic Cylinders Outside Diameter D in 2.25
  • Hydraulic Cylinders Plunger Diameter F in 1.19
  • Hydraulic Cylinders Plunger Thread Length P in 1.25
  • Hydraulic Cylinders Saddle Diameter J in 1¼"-11½" NPT
  • Hydraulic Cylinders Base Mounting Holes Thread V 1 1/4" - 11 1/2 NPT
  • Hydraulic Cylinders Collapsed Height A mm 301
  • Hydraulic Cylinders Collar Thread Length X mm 26
  • Hydraulic Cylinders Collar Thread W mm 2 1/4" - 14 UN
  • Hydraulic Cylinders Cylinder Bore Diameter E mm 42,9
  • Hydraulic Cylinders Extended Height B mm 441
  • Hydraulic Cylinders Outside Diameter D mm 57
  • Hydraulic Cylinders Plunger Diameter F mm 30,2
  • Hydraulic Cylinders Plunger Thread Length P mm 32
  • Hydraulic Cylinders Saddle Diameter J1 mm 1�"-11�" NPT
  • Hydraulic Cylinders saddle Diameter J Mm 1 1/4" - 11 1/2 NPT
