CYL 5 T S/A GENERAL

CYL 5 T S/A GENERAL

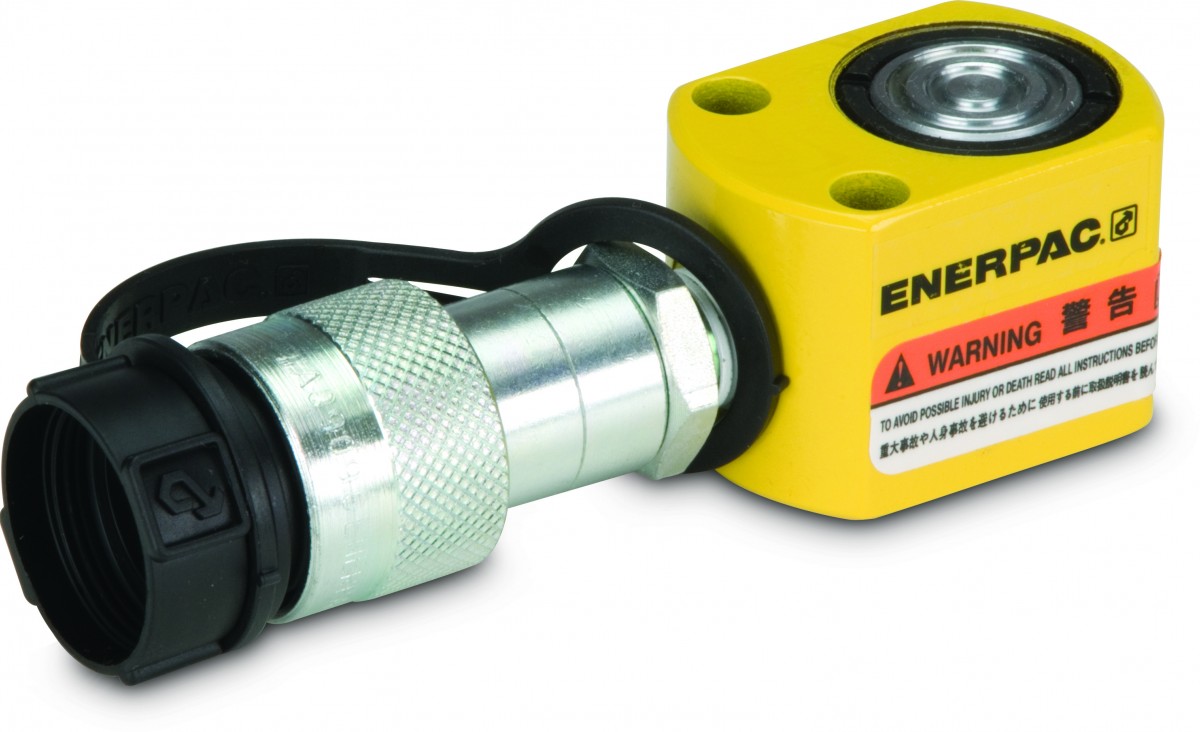

  • Model RC50
  • Product Line Industrial Tools
  • Series RC

The next evolution of the legendary Enerpac RC-Series hydraulic cylinder. The driving force of the Enerpac cylinder range, the RC-TRIO is as versatile as ever. Featuring a Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity.



Enquire about this shop item here

Description

  • Unique GR2 Bearing Design, reduces wear, extending life
  • Base mounting holes enable easy fixturing
  • Designed for use in all positions
  • High strength alloy steel for durability
  • Redesigned cylinder thread protector for ease of use
  • Heavy-duty, pretensioned spring improves retraction speed
  • Baked enamel finish for increased corrosion resistance
  • CR400 coupler and dust cap included on all models
  • Plunger wiper reduces contamination, extending
  • Maximum Operating Pressure bar 700
  • Maximum Operating Pressure psi 10,000
  • Stroke in 0.63
  • Weight Lbs 2.2
  • Hydraulic Cylinders Cylinder Class Imperial Tons 5
  • Hydraulic Cylinders Cylinder Effective Area Advance In2 0.99
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance Imperial Tons 4.9
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance kn 45
  • Hydraulic Cylinders Maximum Operating Pressure Rangespsi 10,000
  • Hydraulic Cylinders Oil Capacity Advance In3 0.62
  • Hydraulic Cylinders collapsed Height A Ranges In 0 - 4.99
  • Hydraulic Cylinders cylinder Capacity Tons Maximum 4.9
  • Hydraulic Cylinders cylinder Effective Area In 0.99
  • Hydraulic Cylinders extended Height In 2.25
  • Hydraulic Cylinders features Mounting Options
  • Hydraulic Cylinders oil Capacity Advance Cm3 10
  • Hydraulic Cylinders oil Capacity In3 0.62
  • Hydraulic Cylinders return Type Single-Acting, Spring Return
  • Hydraulic Cylinders stroke Ranges In 0 - 0.99
  • Maximum Operating Pressure bar 700
  • Stroke mm 16
  • Weight Kgs 1,0
  • Hydraulic Cylinders Cylinder Effective Area Advance cm2 6,5
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance kn 45
  • Hydraulic Cylinders Oil Capacity Advance In3 0.62
  • Hydraulic Cylinders collapsed Height A Ranges Mm 0 - 127
  • Hydraulic Cylinders cylinder Capacity Tons Maximum 4.9
  • Hydraulic Cylinders features Mounting Options
  • Hydraulic Cylinders oil Capacity Advance Cm3 10
  • Hydraulic Cylinders oil Capacity In3 0.62
  • Hydraulic Cylinders return Type Single-Acting, Spring Return
  • Hydraulic Cylinders stroke Ranges Mm 0 - 23
  • Hydraulic Cylinders Base Mounting Holes Bolt Circle U in 1.13
  • Hydraulic Cylinders Base Mounting Holes Thread V 5,6 mm
  • Hydraulic Cylinders Base Mounting Holes Thread V in 0.22
  • Hydraulic Cylinders Baseto Advance Port H in 0.75
  • Hydraulic Cylinders Collapsed Height A in 1.63
  • Hydraulic Cylinders Cylinder Bore Diameter E in 1.13
  • Hydraulic Cylinders Extended Height B in 2.25
  • Hydraulic Cylinders Outside Diameter D in 2.31
  • Hydraulic Cylinders Plunger Diameter F in 1
  • Hydraulic Cylinders base Mounting Hole Bolt Circle In 1.13
  • Hydraulic Cylinders base Mounting Hole Thread In 0.22
  • Hydraulic Cylinders base To Advance Port In 0.75
  • Hydraulic Cylinders cylinder Bore Diameter In 1.13
  • Hydraulic Cylinders outside Diameter In 2.31
  • Hydraulic Cylinders plunger Diameter In 1
  • Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm 28
  • Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm —
  • Hydraulic Cylinders Base Mounting Holes Thread V 5,6 mm
  • Hydraulic Cylinders Baseto Advance Port H mm 19
  • Hydraulic Cylinders Collapsed Height A mm 41
  • Hydraulic Cylinders Cylinder Bore Diameter E mm 28,7
  • Hydraulic Cylinders Dimension Mmm 25
  • Hydraulic Cylinders Extended Height B mm 57
  • Hydraulic Cylinders Outside Diameter D mm 58
  • Hydraulic Cylinders Plunger Diameter F mm 25,4
  • Hydraulic Cylinders dimension D1 Mm 41
  • Hydraulic Cylinders dimension L Mm 20
