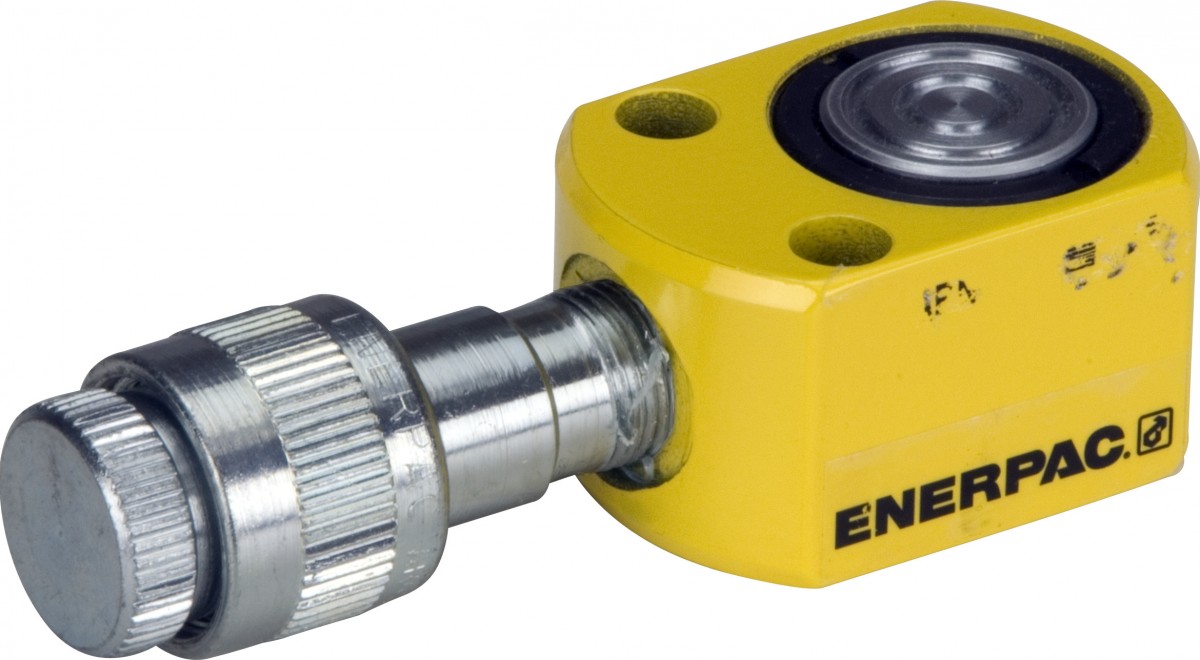

CYL 5 T S/A FLAT-JAC

CYL 5 T S/A FLAT-JAC

  • Model RSM50
  • Product Line Industrial Tools
  • Series RSM
Enquire about this shop item here

Description

  • Compact, flat design for use where other cylinders will not fit
  • Mounting holes permit easy fixturing
  • Baked enamel finish for increased corrosion resistance
  • AR400 coupler and dust cap included
  • Hard chrome plated high-quality steel plungers
  • Grooved plunger ends require no saddle
  • Single-acting spring return
  • Maximum Operating Pressure bar 700
  • Maximum Operating Pressure psi 10,000
  • Stroke in 0.25
  • Weight Lbs 2.3
  • Hydraulic Cylinders Base Mounting Hole Counter Bore Depth in 0.17
  • Hydraulic Cylinders Base Mounting Hole Counter Bore Diameter in 0.321
  • Hydraulic Cylinders Base Mounting Hole Diameter Vin 0.2
  • Hydraulic Cylinders Base Mounting Hole Pitch Uin 1.12
  • Hydraulic Cylinders Cylinder Class Imperial Tons 5
  • Hydraulic Cylinders Cylinder Effective Area Advance In2 0.99
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance Imperial Tons 4.9
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance kn 45
  • Hydraulic Cylinders Maximum Operating Pressure Rangespsi 10,000
  • Hydraulic Cylinders Oil Capacity Advance In3 0.25
  • Hydraulic Cylinders Plunger To Base Lin 0.81
  • Hydraulic Cylinders Plunger To Mounting Hole Min 0.88
  • Hydraulic Cylinders collapsed Height A Ranges In 0 - 4.99
  • Hydraulic Cylinders oil Capacity Advance Cm3 4
  • Hydraulic Cylinders return Type Single-Acting, Spring Return
  • Hydraulic Cylinders stroke Ranges In 0 - 0.99
  • Maximum Operating Pressure bar 700
  • Stroke mm 6
  • Weight Kgs 1,0
  • Hydraulic Cylinders Base Mounting Hole Counter Bore Depth mm 4,3
  • Hydraulic Cylinders Base Mounting Hole Counter Bore Diameter mm 9,1
  • Hydraulic Cylinders Base Mounting Hole Diameter Vmm 5,5
  • Hydraulic Cylinders Base Mounting Hole Pitch Umm 28,5
  • Hydraulic Cylinders Cylinder Effective Area Advance cm2 6,5
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance kn 45
  • Hydraulic Cylinders Oil Capacity Advance In3 0.25
  • Hydraulic Cylinders Plunger To Base Lmm 20
  • Hydraulic Cylinders Plunger To Mounting Hole Mmm 22
  • Hydraulic Cylinders collapsed Height A Ranges Mm 0 - 127
  • Hydraulic Cylinders oil Capacity Advance Cm3 4
  • Hydraulic Cylinders return Type Single-Acting, Spring Return
  • Hydraulic Cylinders stroke Ranges Mm 0 - 23
  • Hydraulic Cylinders Baseto Advance Port H in 0.63
  • Hydraulic Cylinders Collapsed Height A in 1.28
  • Hydraulic Cylinders Cylinder Bore Diameter E in 1.13
  • Hydraulic Cylinders Extended Height B in 1.53
  • Hydraulic Cylinders Outside Diameter D in 2.31 x 1.63
  • Hydraulic Cylinders Plunger Diameter F in 1
  • Hydraulic Cylinders Saddle Protrusion from Plunger K in 0.04
  • Hydraulic Cylinders Baseto Advance Port H mm 16
  • Hydraulic Cylinders Collapsed Height A mm 32
  • Hydraulic Cylinders Cylinder Bore Diameter E mm 28,7
  • Hydraulic Cylinders Extended Height B mm 38
  • Hydraulic Cylinders Outside Diameter D mm 58 x 41
  • Hydraulic Cylinders Plunger Diameter F mm 25,4
  • Hydraulic Cylinders Saddle Protrusionfrom Plunger K1 mm 1
  • Hydraulic Cylinders saddle Protrusion From Plunger K Mm 1
