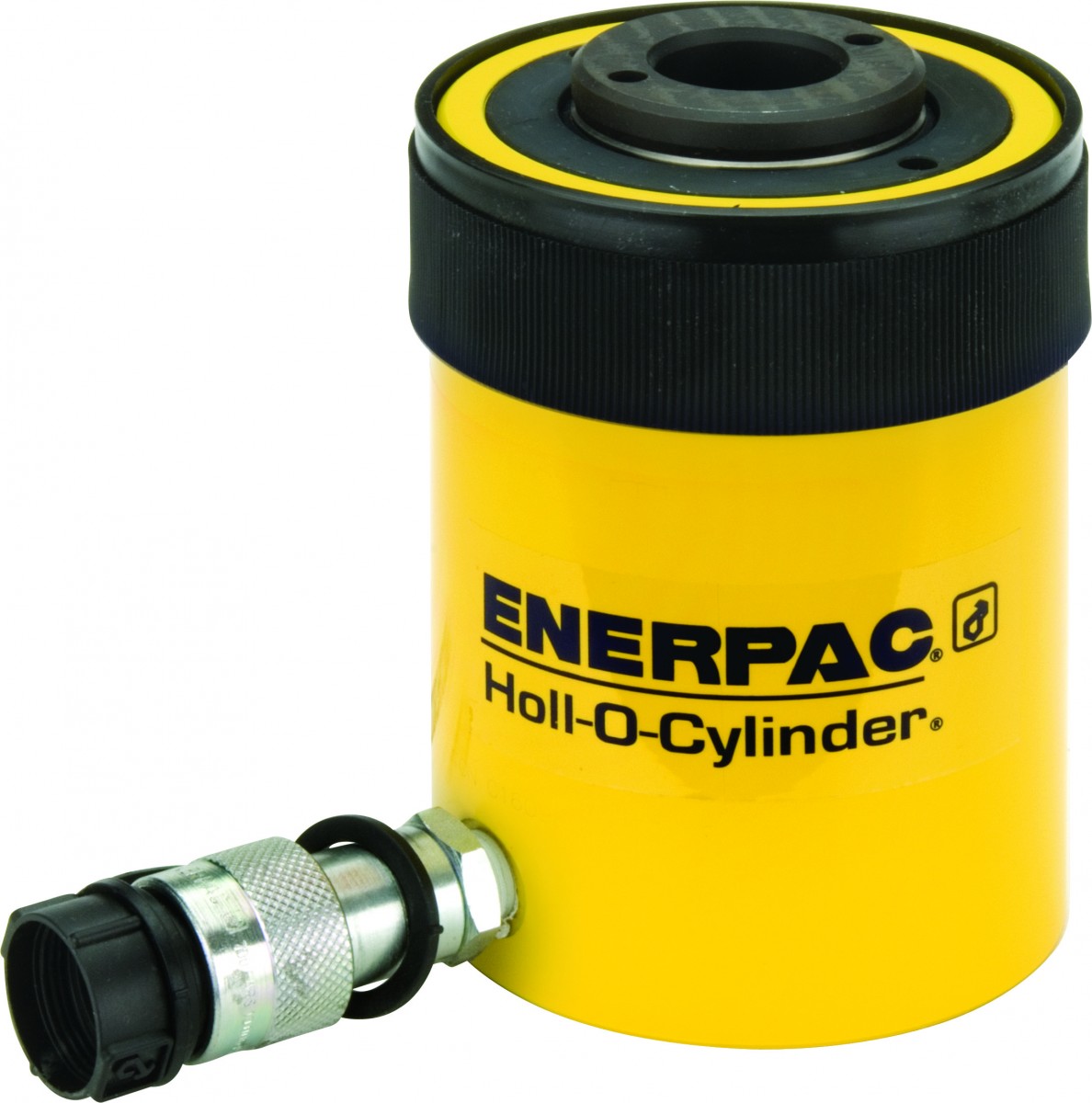

CYL 30 T S/A HOLLOW

CYL 30 T S/A HOLLOW

  • Model RCH302
  • Product Line Industrial Tools
  • Series RCH
Enquire about this shop item here

Description

  • Hollow plunger design allows for both pull and push forces
  • Single-acting spring return
  • Nickel-plated, floating center tube on models over 218 kNs increases product life
  • Baked enamel finish for increased corrosion resistance
  • Collar threads for easy fixturing
  • Features CR400 Coupler
  • Maximum Operating Pressure bar 700
  • Maximum Operating Pressure psi 10,000
  • Stroke in 2.5
  • Weight Lbs 24
  • Bundle Product Ids CR400
  • Hydraulic Cylinders Center Hole Diameter Yin 1.31
  • Hydraulic Cylinders Cylinder Class Imperial Tons 30
  • Hydraulic Cylinders Cylinder Effective Area Advance In2 7.22
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance Imperial Tons 36.1
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance kn 326
  • Hydraulic Cylinders Maximum Operating Pressure Rangespsi 10,000
  • Hydraulic Cylinders Oil Capacity Advance In3 18.05
  • Hydraulic Cylinders collapsed Height A Ranges In 5.0 - 9.99
  • Hydraulic Cylinders oil Capacity Advance Cm3 298
  • Hydraulic Cylinders return Type Single-Acting, Spring Return
  • Hydraulic Cylinders stroke Ranges In 2.0 - 2.99
  • Maximum Operating Pressure bar 700
  • Stroke mm 64
  • Bundle Product Ids CR400
  • Weight Kgs 10,9
  • Hydraulic Cylinders Center Hole Diameter Ymm 33,3
  • Hydraulic Cylinders Cylinder Effective Area Advance cm2 46,6
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance kn 326
  • Hydraulic Cylinders Oil Capacity Advance In3 18.05
  • Hydraulic Cylinders collapsed Height A Ranges Mm 128 - 254
  • Hydraulic Cylinders oil Capacity Advance Cm3 298
  • Hydraulic Cylinders return Type Single-Acting, Spring Return
  • Hydraulic Cylinders stroke Ranges Mm 48 - 94
  • Hydraulic Cylinders Base Mounting Holes Bolt Circle U in 3.63
  • Hydraulic Cylinders Base Mounting Holes Thread Depth Z in 0.55
  • Hydraulic Cylinders Base Mounting Holes Thread V 3/8"-16 unc
  • Hydraulic Cylinders Base Mounting Holes Thread V in 3/8"-16 unc
  • Hydraulic Cylinders Baseto Advance Port H in 0.85
  • Hydraulic Cylinders Collapsed Height A in 7.03
  • Hydraulic Cylinders Collar Thread Length X in 1.66
  • Hydraulic Cylinders Collar Thread W in 4 1/2" - 12
  • Hydraulic Cylinders Cylinder Bore Diameter E in 3.5
  • Hydraulic Cylinders Extended Height B in 9.53
  • Hydraulic Cylinders Outside Diameter D in 4.5
  • Hydraulic Cylinders Plunger Diameter F in 2.5
  • Hydraulic Cylinders Plunger Internal Thread O in 1 13/16" - 16 un
  • Hydraulic Cylinders Plunger Internal Threadin O in 1 13/16" - 16 un
  • Hydraulic Cylinders Plunger Thread Length P in 0.88
  • Hydraulic Cylinders Saddle Diameter J in 2.5
  • Hydraulic Cylinders Saddle Protrusion from Plunger K in 0.38
  • Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm 92,2
  • Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm 14,0
  • Hydraulic Cylinders Base Mounting Holes Thread V 3/8"-16 unc
  • Hydraulic Cylinders Baseto Advance Port H mm 21
  • Hydraulic Cylinders Collapsed Height A mm 178
  • Hydraulic Cylinders Collar Thread Length X mm 42
  • Hydraulic Cylinders Collar Thread W mm 4 1/2" - 12
  • Hydraulic Cylinders Cylinder Bore Diameter E mm 88,9
  • Hydraulic Cylinders Extended Height B mm 242
  • Hydraulic Cylinders Outside Diameter D mm 114
  • Hydraulic Cylinders Plunger Diameter F mm 63,5
  • Hydraulic Cylinders Plunger Thread Length P mm 22
  • Hydraulic Cylinders Saddle Diameter J1 mm 63
  • Hydraulic Cylinders Saddle Protrusionfrom Plunger K1 mm 9,0
  • Hydraulic Cylinders saddle Diameter J Mm 63
  • Hydraulic Cylinders saddle Protrusion From Plunger K Mm 9,0
