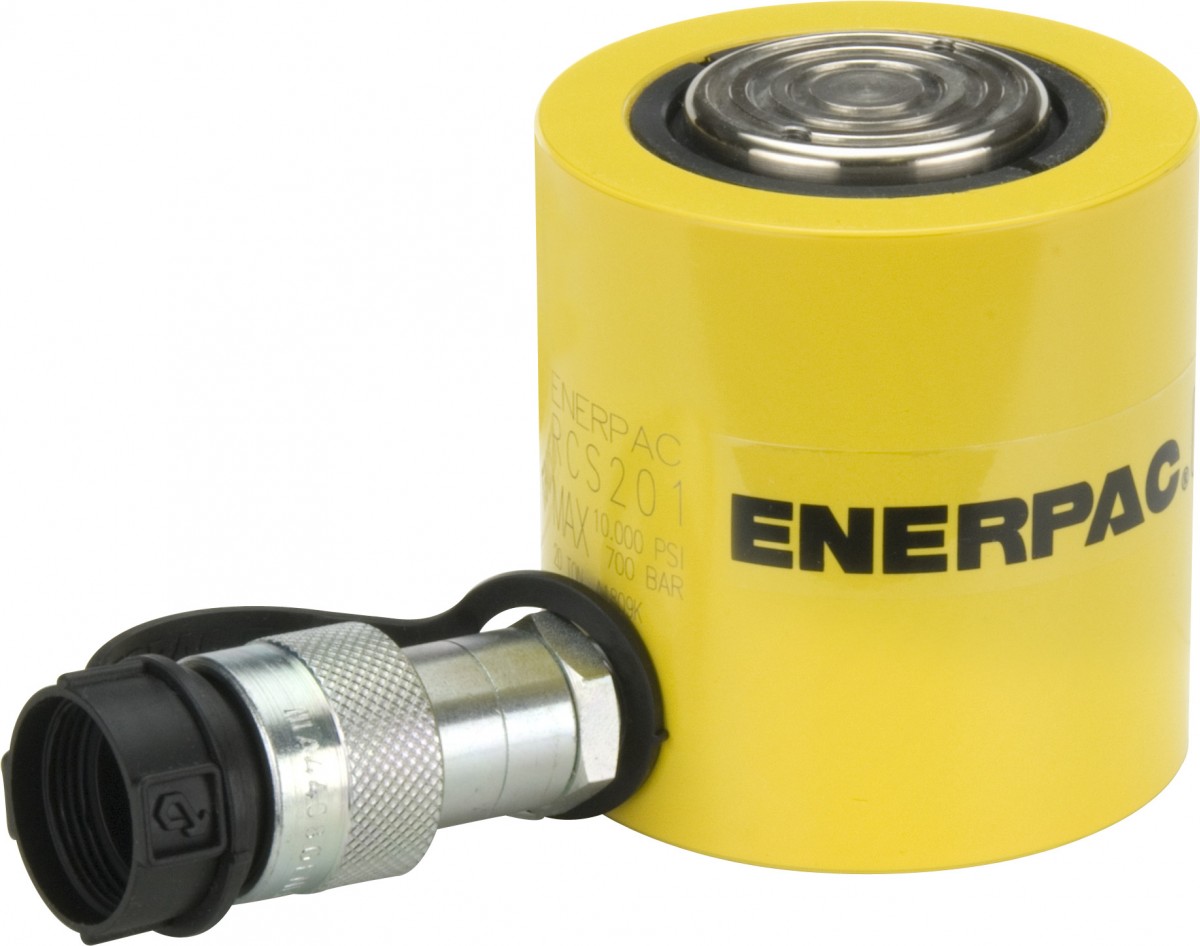

CYL 20 T S/A LOW HGT

CYL 20 T S/A LOW HGT

  • Model RCS201
  • Product Line Industrial Tools
  • Series RCS

a

Enquire about this shop item here

Description

  • Lightweight, low profile design for use in confined spaces
  • Baked enamel finish for increased corrosion resistance
  • Plunger wiper reduces contamination, extending cylinder life
  • CR400 coupler and dust cap included on all models
  • Grooved plunger end with threaded holes for mounting tilt saddles
  • Plated steel plungers
  • Single-acting spring return
  • Maximum Operating Pressure bar 700
  • Maximum Operating Pressure psi 10,000
  • Stroke in 1.75
  • Weight Lbs 11
  • Hydraulic Cylinders Cylinder Class Imperial Tons 20
  • Hydraulic Cylinders Cylinder Effective Area Advance In2 4.43
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance Imperial Tons 22.1
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance kn 201
  • Hydraulic Cylinders Maximum Operating Pressure Rangespsi 10,000
  • Hydraulic Cylinders Oil Capacity Advance In3 7.75
  • Hydraulic Cylinders collapsed Height A Ranges In 0 - 4.99
  • Hydraulic Cylinders oil Capacity Advance Cm3 129
  • Hydraulic Cylinders return Type Single-Acting, Spring Return
  • Hydraulic Cylinders stroke Ranges In 1.0 - 1.99
  • Maximum Operating Pressure bar 700
  • Stroke mm 45
  • Weight Kgs 5,0
  • Hydraulic Cylinders Cylinder Effective Area Advance cm2 28,7
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance kn 201
  • Hydraulic Cylinders Oil Capacity Advance In3 7.75
  • Hydraulic Cylinders collapsed Height A Ranges Mm 0 - 127
  • Hydraulic Cylinders oil Capacity Advance Cm3 129
  • Hydraulic Cylinders return Type Single-Acting, Spring Return
  • Hydraulic Cylinders stroke Ranges Mm 24 - 47
  • Hydraulic Cylinders Base Mounting Holes Bolt Circle U in 1.57
  • Hydraulic Cylinders Baseto Advance Port H in 0.69
  • Hydraulic Cylinders Collapsed Height A in 3.88
  • Hydraulic Cylinders Cylinder Bore Diameter E in 2.38
  • Hydraulic Cylinders Extended Height B in 5.63
  • Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 in 0.98
  • Hydraulic Cylinders Outside Diameter D in 3.63
  • Hydraulic Cylinders Plunger Diameter F in 2
  • Hydraulic Cylinders Plunger Internal Thread O in M5
  • Hydraulic Cylinders Plunger Internal Threadin O in M5
  • Hydraulic Cylinders Plunger Thread Length P in 0.32
  • Hydraulic Cylinders Saddle Diameter J in 1.97
  • Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees 5
  • Hydraulic Cylinders Saddle Protrusion from Plunger K in 0.13
  • Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm 40
  • Hydraulic Cylinders Baseto Advance Port H mm 17
  • Hydraulic Cylinders Collapsed Height A mm 98
  • Hydraulic Cylinders Cylinder Bore Diameter E mm 60,5
  • Hydraulic Cylinders Extended Height B mm 143
  • Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm 25
  • Hydraulic Cylinders Outside Diameter D mm 92
  • Hydraulic Cylinders Plunger Diameter F mm 50,8
  • Hydraulic Cylinders Plunger Thread Length P mm 8
  • Hydraulic Cylinders Saddle Diameter J1 mm 50
  • Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees 5
  • Hydraulic Cylinders Saddle Protrusionfrom Plunger K1 mm 3
  • Hydraulic Cylinders saddle Diameter J Mm 50
  • Hydraulic Cylinders saddle Protrusion From Plunger K Mm 3
