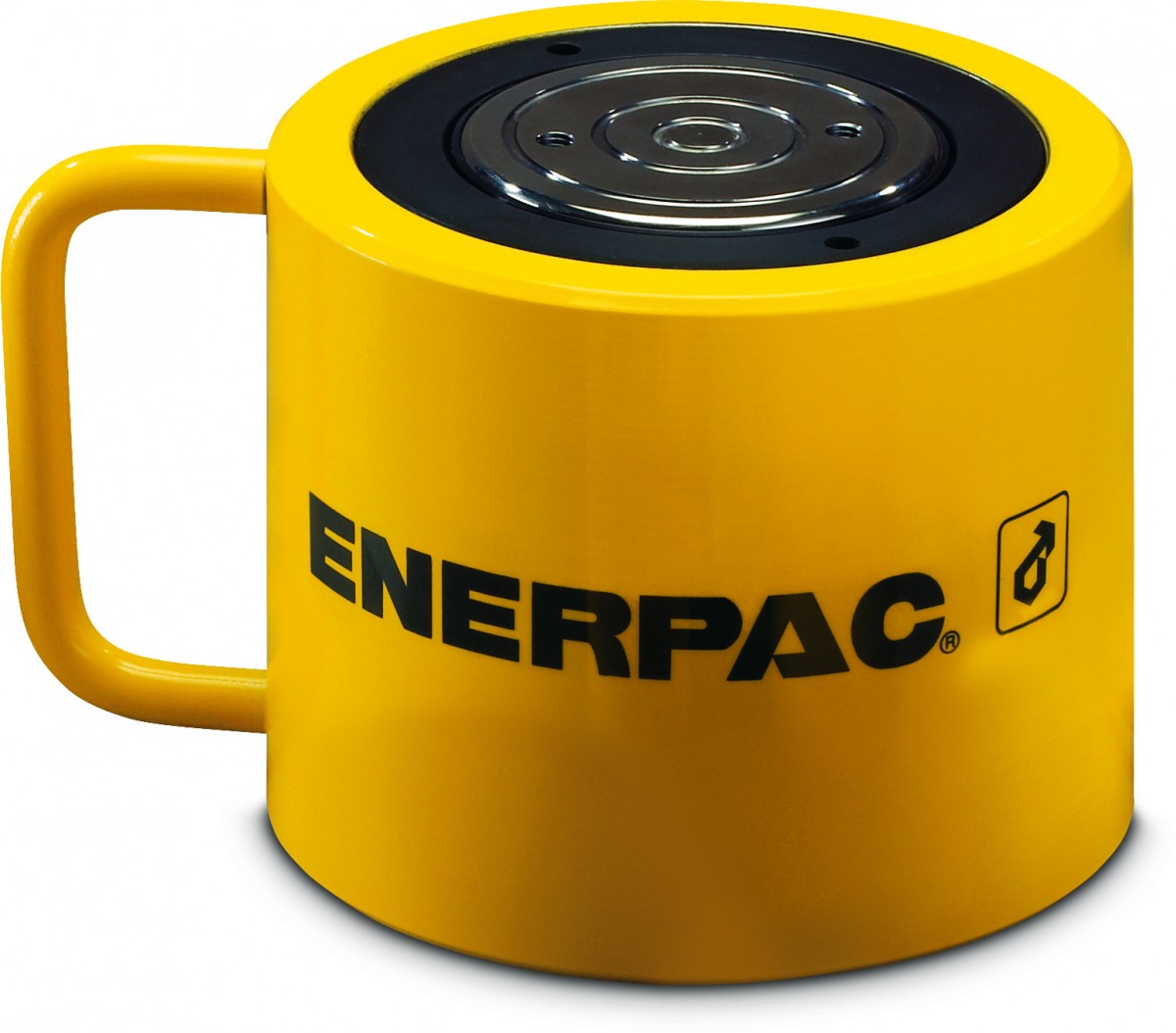

CYL 100 T S/A LOW HGT

CYL 100 T S/A LOW HGT

  • Model RCS1002
  • Product Line Industrial Tools
  • Series RCS

a

Enquire about this shop item here

Description

  • Lightweight, low profile design for use in confined spaces
  • Baked enamel finish for increased corrosion resistance
  • Plunger wiper reduces contamination, extending cylinder life
  • CR400 coupler and dust cap included on all models
  • Grooved plunger end with threaded holes for mounting tilt saddles
  • Plated steel plungers
  • Single-acting spring return
  • Maximum Operating Pressure bar 700
  • Maximum Operating Pressure psi 10,000
  • Stroke in 2.25
  • Weight Lbs 46
  • Hydraulic Cylinders Cylinder Class Imperial Tons 100
  • Hydraulic Cylinders Cylinder Effective Area Advance In2 19.63
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance Imperial Tons 98.1
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance kn 887
  • Hydraulic Cylinders Maximum Operating Pressure Rangespsi 10,000
  • Hydraulic Cylinders Oil Capacity Advance In3 44.18
  • Hydraulic Cylinders collapsed Height A Ranges In 5.0 - 9.99
  • Hydraulic Cylinders oil Capacity Advance Cm3 722
  • Hydraulic Cylinders return Type Single-Acting, Spring Return
  • Hydraulic Cylinders stroke Ranges In 2.0 - 2.99
  • Maximum Operating Pressure bar 700
  • Stroke mm 57
  • Weight Kgs 20,7
  • Hydraulic Cylinders Cylinder Effective Area Advance cm2 126,7
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance kn 887
  • Hydraulic Cylinders Oil Capacity Advance In3 44.18
  • Hydraulic Cylinders collapsed Height A Ranges Mm 128 - 254
  • Hydraulic Cylinders oil Capacity Advance Cm3 722
  • Hydraulic Cylinders return Type Single-Acting, Spring Return
  • Hydraulic Cylinders stroke Ranges Mm 48 - 94
  • Hydraulic Cylinders Base Mounting Holes Bolt Circle U in 2.17
  • Hydraulic Cylinders Baseto Advance Port H in 1.25
  • Hydraulic Cylinders Collapsed Height A in 5.56
  • Hydraulic Cylinders Cylinder Bore Diameter E in 5
  • Hydraulic Cylinders Extended Height B in 7.81
  • Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 in 1.38
  • Hydraulic Cylinders Outside Diameter D in 6.5
  • Hydraulic Cylinders Plunger Diameter F in 3.63
  • Hydraulic Cylinders Plunger Internal Thread O in M8
  • Hydraulic Cylinders Plunger Internal Threadin O in M8
  • Hydraulic Cylinders Plunger Thread Length P in 0.4
  • Hydraulic Cylinders Saddle Diameter J in 2.8
  • Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees 5
  • Hydraulic Cylinders Saddle Protrusion from Plunger K in 0.06
  • Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm 55
  • Hydraulic Cylinders Baseto Advance Port H mm 31
  • Hydraulic Cylinders Collapsed Height A mm 141
  • Hydraulic Cylinders Cylinder Bore Diameter E mm 127,0
  • Hydraulic Cylinders Extended Height B mm 198
  • Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm 35
  • Hydraulic Cylinders Outside Diameter D mm 165
  • Hydraulic Cylinders Plunger Diameter F mm 92,2
  • Hydraulic Cylinders Plunger Thread Length P mm 10
  • Hydraulic Cylinders Saddle Diameter J1 mm 71
  • Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees 5
  • Hydraulic Cylinders Saddle Protrusionfrom Plunger K1 mm 1
  • Hydraulic Cylinders saddle Diameter J Mm 71
  • Hydraulic Cylinders saddle Protrusion From Plunger K Mm 1
