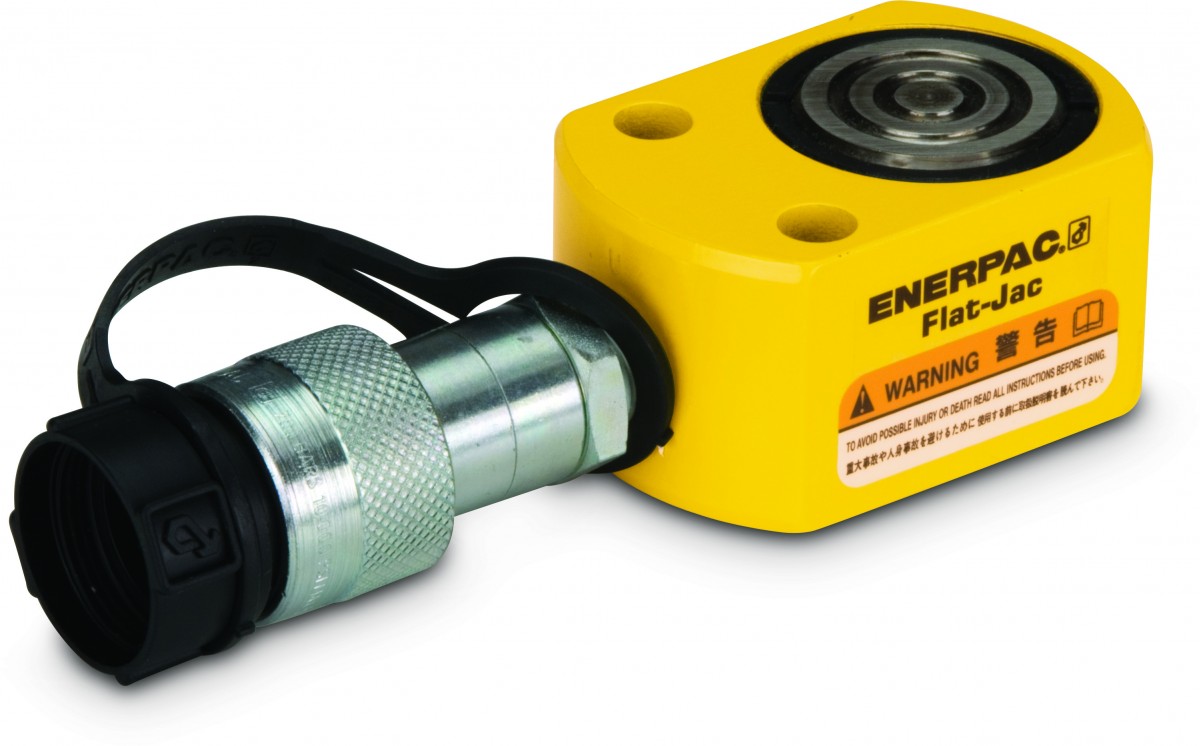

CYL 10 T S/A FLAT-JAC

CYL 10 T S/A FLAT-JAC

  • Model RSM100
  • Product Line Industrial Tools
  • Series RSM
Enquire about this shop item here

Description

  • Compact, flat design for use where other cylinders will not fit
  • Mounting holes permit easy fixturing
  • Baked enamel finish for increased corrosion resistance
  • CR400 coupler and dust cap included
  • Hard chrome plated high-quality steel plungers
  • Grooved plunger ends require no saddle
  • Single-acting spring return
  • Maximum Operating Pressure bar 700
  • Maximum Operating Pressure psi 10,000
  • Stroke in 0.44
  • Weight Lbs 3.1
  • Hydraulic Cylinders Base Mounting Hole Counter Bore Depth in 0.31
  • Hydraulic Cylinders Base Mounting Hole Counter Bore Diameter in 0.422
  • Hydraulic Cylinders Base Mounting Hole Diameter Vin 0.28
  • Hydraulic Cylinders Base Mounting Hole Pitch Uin 1.44
  • Hydraulic Cylinders Cylinder Class Imperial Tons 10
  • Hydraulic Cylinders Cylinder Effective Area Advance In2 2.24
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance Imperial Tons 11.2
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance kn 101
  • Hydraulic Cylinders Maximum Operating Pressure Rangespsi 10,000
  • Hydraulic Cylinders Oil Capacity Advance In3 0.98
  • Hydraulic Cylinders Plunger To Base Lin 1.09
  • Hydraulic Cylinders Plunger To Mounting Hole Min 1.34
  • Hydraulic Cylinders collapsed Height A Ranges In 0 - 4.99
  • Hydraulic Cylinders oil Capacity Advance Cm3 18
  • Hydraulic Cylinders return Type Single-Acting, Spring Return
  • Hydraulic Cylinders stroke Ranges In 0 - 0.99
  • Maximum Operating Pressure bar 700
  • Stroke mm 11
  • Weight Kgs 1,4
  • Hydraulic Cylinders Base Mounting Hole Counter Bore Depth mm 7,9
  • Hydraulic Cylinders Base Mounting Hole Counter Bore Diameter mm 10,7
  • Hydraulic Cylinders Base Mounting Hole Diameter Vmm 7,1
  • Hydraulic Cylinders Base Mounting Hole Pitch Umm 36,6
  • Hydraulic Cylinders Cylinder Effective Area Advance cm2 14,5
  • Hydraulic Cylinders Maximum Cylinder Capacity Advance kn 101
  • Hydraulic Cylinders Oil Capacity Advance In3 0.98
  • Hydraulic Cylinders Plunger To Base Lmm 27
  • Hydraulic Cylinders Plunger To Mounting Hole Mmm 34
  • Hydraulic Cylinders collapsed Height A Ranges Mm 0 - 127
  • Hydraulic Cylinders oil Capacity Advance Cm3 18
  • Hydraulic Cylinders return Type Single-Acting, Spring Return
  • Hydraulic Cylinders stroke Ranges Mm 0 - 23
  • Hydraulic Cylinders Baseto Advance Port H in 0.75
  • Hydraulic Cylinders Collapsed Height A in 1.69
  • Hydraulic Cylinders Cylinder Bore Diameter E in 1.69
  • Hydraulic Cylinders Extended Height B in 2.13
  • Hydraulic Cylinders Outside Diameter D in 3.25 x 2.19
  • Hydraulic Cylinders Plunger Diameter F in 1.5
  • Hydraulic Cylinders Saddle Protrusion from Plunger K in 0.04
  • Hydraulic Cylinders Baseto Advance Port H mm 19
  • Hydraulic Cylinders Collapsed Height A mm 43
  • Hydraulic Cylinders Cylinder Bore Diameter E mm 42,9
  • Hydraulic Cylinders Extended Height B mm 54
  • Hydraulic Cylinders Outside Diameter D mm 82 x 55
  • Hydraulic Cylinders Plunger Diameter F mm 38,1
  • Hydraulic Cylinders Saddle Protrusionfrom Plunger K1 mm 1
  • Hydraulic Cylinders saddle Protrusion From Plunger K Mm 1
