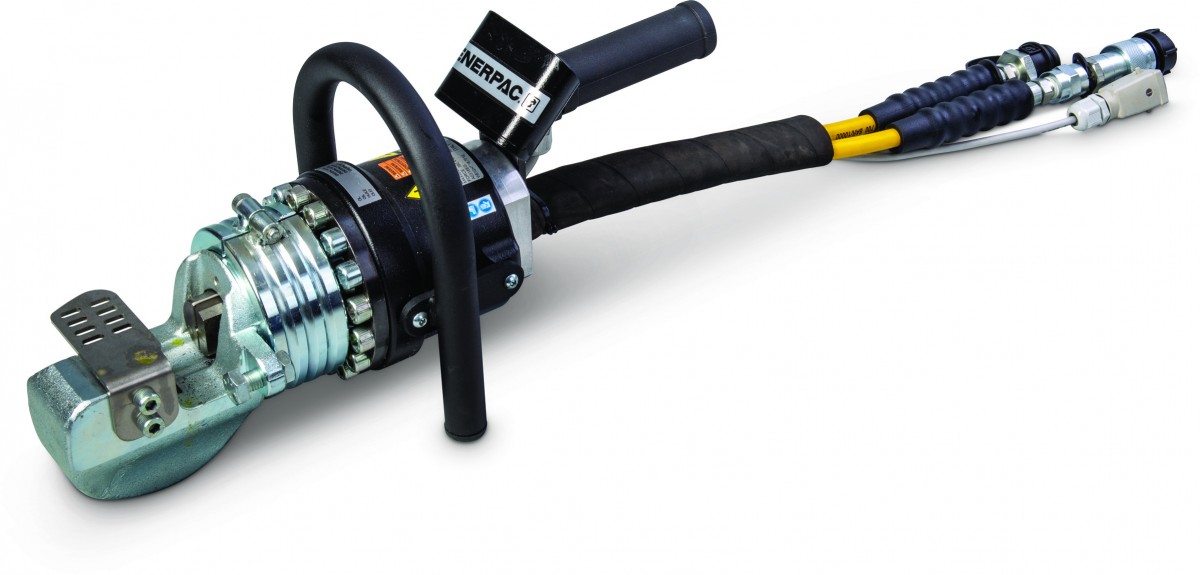

CUTTER - BAR, HYDRAULIC, 30MM

CUTTER - BAR, HYDRAULIC, 30MM

  • Model EBH30
  • Product Line Industrial Tools
  • Series EBH

a

Description

  • Your fast, safe and simple solution for cutting metal bar
  • The EBH-Series Hydraulic Bar Cutters are driven by a specialized external hydraulic pump for optimal power and a higher duty cycle compared with other cutter types. These cutters are ideal for use in production or manufacturing facilities with demanding, high-volume cutting applications.
  • The EBH-Series Hydraulic Cutters are designed to work with ZE6410X-Series electric pumps. Pump models vary by voltage type.
  • Highly durable, long-lasting blades outlast angle grinder or saw blades
  • Controlled cutting process enhances user safety compared with use of cut-off blades
  • Minimal spark risk compared to torching, grinding and sawing methods
  • Cutters produce minimal vibration, helping prevent HAVS (Hand Arm Vibration Syndrome)
  • Safety guard helps protect hands from injury.
  • Double-acting cylinder with advance and retract buttons improves control and reduces jamming
  • External hydraulic pump helps keep the tool cool, improving operational time (pump and hose sold separately).
  • Maximum Operating Pressure bar 700
  • Maximum Operating Pressure psi 10,000
  • Weight Lbs 46
  • Capacity Imperialtons 50
  • Capacity K N 445
  • Compatible Products ZE6410XM-S,ZE6410XG-S,ZE6410XW-S,ZE6410XK-S,ZE6410XJ-S,CH720EC
  • Cutter Maximum Allowable Hardnessto Split HRc 43
  • Cutter Maximum Material Tensile Strength da Nmm2 60
  • Cutter cutter Pump Power Source Electric Pump
  • Cutter cutter Power Source Electric
  • Cutter maximum Material Diameter In 1.18
  • Cutter maximum Material Tensile Strength Psi 87,000
  • Maximum Operating Pressure bar 700
  • Capacity Imperialtons 50
  • Capacity K N 445
  • Compatible Products ZE6410XM-S,ZE6410XG-S,ZE6410XW-S,ZE6410XK-S,ZE6410XJ-S,CH720EC
  • Weight Kgs 21
  • Cutter Maximum Allowable Hardnessto Split HRc 43
  • Cutter Maximum Material Diameter mm 30
  • Cutter Maximum Material Tensile Strength da Nmm2 60
  • Cutter cutter Pump Power Source Electric Pump
  • Cutter cutter Power Source Electric
  • Dimension A In 18.9
  • Dimension B In 7.2
  • Dimension C In 8.7
  • Dimension A Mm 480
  • Dimension B Mm 183
  • Dimension C Mm 221
