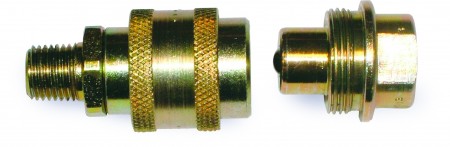

COUPLER SET

COUPLER SET

  • Model T630
  • Product Line Industrial Tools
  • Series T - Coupler
Enquire about this shop item here

Description

  • Enerpac hydraulic couplers provide quick connection of hydraulic lines
  • 10,000 and 11,600 psi 1/4" couplers for torque wrenches
  • 10,000 psi 3/8" couplers for cylinders, tools and pumps
  • Maximum Operating Pressure bar 700
  • Maximum Operating Pressure psi 10,000
  • Coupler anatomy Complete Set
  • Coupler maximum Flow Capacity In3min 695
  • Coupler maximum Flow Capacity Lmin 11,4
  • Coupler maximum Operating Pressure 10000
  • Maximum Operating Pressure bar 700
  • Coupler anatomy Complete Set
  • Coupler maximum Operating Pressure 10000
  • Dimension A In 2.87
  • Dimension B In 2.36
  • Dimension C In 1/4" NPTF
  • Dimension D In 1.14
  • Dimension E In 1.14
  • Dimension F In 0.74
  • Dimension G In 0.82
  • Dimension A Mm 73
  • Dimension B Mm 60
  • Dimension C Mm 1/4 nptf
  • Dimension D Mm 29
  • Dimension E Mm 29
  • Dimension F Mm 19
  • Dimension G Mm 21
